Soft light strip instructions：
Specifications

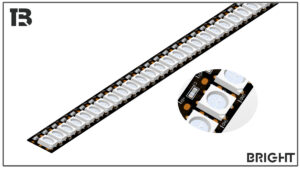

- Using high-brightness SMD5050 LED beads, FPC board。
- The standard length of each strip is 5 meters, and each strip contains 120 pieces of LED beads per meter
- Lighting color: Controlled by the built-in chip of WS2812, with pixel marathon, RGB, full color, and monochrome options
- Operating voltage: DC5V （If you need DC12V/DC24V, please contact customer service for ordering or customization）
- Waterproof SMD light strip: additional options include casing (IP65), epoxy (IP65), and casing with epoxy (IP68). Please add a note when ordering

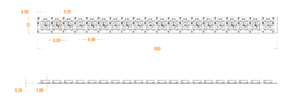

- FPC type: 10mm, thickness 0.2mm, light-mounted thickness 1.88mm, pitch6.9mm. Dimensions are for reference only, please refer to the actual product dimensions
Product Parameters：
- Main materials：FPC (Flexible Printed Circuit)
- waterproof rating：IP20
- Light transmittance 100%
- Operating temperature/humidity: -20°C to 50°C / 50%RH
- Scope of use: Indoor
- Luminous color: Programmable full-color
- Product dimensions: L5000MM*W10MM*H1.88mm
- Power: up to 43.2W/M

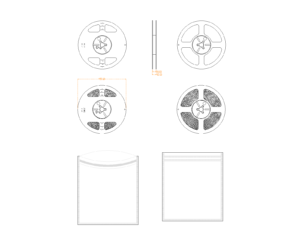

Packaging Instructions
- Wrapped around a 6-inch reel, with each reel containing 5 meters
- The reel is placed in an anti-static aluminum-plastic moisture-proof bag
- Bag specifications: width 188mm, height 215mm, thickness 0.1mm, with a skeleton seal
- Weight of one bag: 218 grams
- One box contains 300 meters, 60 rolls
- Kraft paper box specifications: material K737K, dimensions L*W*H=400MM*370*235MM
- Packing weight: 14.6kg, Net weight: 13.1kg.
Purpose:
1. SMD patch soft light strips are suitable for indoor decoration in hotels, ultra-thin light boxes, KTV entertainment venues, and other similar settings.
2. Used in high-quality decoration fields such as advertising signs.
3. Vacation decorative lighting, display and exhibition.
4. Mall counters, jewelry and accessory displays, and luxury watch counters.
Precautions for product installation
(1) LED products are sensitive to static electricity. During installation and use, please take precautions to prevent static electricity, as it can cause LED breakdown, resulting in the lights not working. Do not press the LED surface with sharp objects,
(2) Do not directly plug the light strip into a 110V-220V power source, as this may cause it to burn out. The light strip requires a separate power supply, and the power rating of the power supply can be determined based on the total power of the light strips in use and the length of the connections between the light strips.
(3) During product installation, avoid bending or positioning directly on the LED or other components to prevent component detachment and damage to the product surface.
(4) Non-waterproof light strips should not be installed in damp environments with humidity levels exceeding 50%RH. The surface waterproofing achieved by glue dripping can only temporarily prevent splashes or drips. Do not leave them in water or rain for extended periods. If not necessary, please choose products with higher waterproof ratings.
