Function description:
- Mobile BanlanX APP control, new scene based APP UI design, visible lighting effectsPreview and bring a unique visual experience;
- Adopting BlueTooth MESH grouping technology to achieve flexible grouping and unified management of devices, even for some parts Equipment failure will not affect overall communication, ensuring the stability of the entire lighting system;
- Equipped with an RF amplifier chip, the wireless signal coverage range is wide, achieving frame synchronization of device lighting effects within a radius of 260 meters;
- The grouping operation is simple and intuitive, allowing for the addition of multiple groups. Single control and group control can be switched freely;
- Adopting high-power MOS transistors and holding 16KHz high-frequency PWM dimming, it has stronger and higher quality driving capability;
- Holding a conventional zeroing code three channel driver IC;
- Hold on/off animation effects, timed switches, and automatic equipment reconnection functions;
- Upgrade OTA firmware online to ensure continuous optimization and improvement of device functionality.
Technical parameters：
- controller name：MESH networking frame synchronization LED controller.
- Model: SP32XE（SP321E-s325e/SP328E）
- Working voltage : 5V-24VDC
- APP: BanlanX
- Music Collection: Support mobile microphone, player streaming, and onboard microphone
- network characteristics: BLE Mesh network, supporting 200 devices per group, devices can span 10 groups
- wireless distance: The straight-line distance between two devices in a Mesh network can reach 30 meters, and the frame synchronization signal covers 260 meters (in open spaces)
- output signal: PWM(SP321E-SP325E)、SPI(SP328E)
- Outgoing method: Port type
Series parameters:

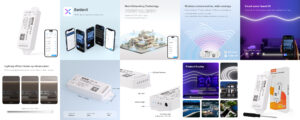

- SP321E, Mesh Network synchroniztion 1-way PWM monochromatic LED controller; Single channel max current: 6A; Max current of the whole machine: 12A
- SP322E, Mesh group synchronous 2-channel PWM CCT LED controller; Single channel max current: 6A; Max current of the whole machine: 12A
- SP323E, Mesh group synchronous 3-channel PWM RGB LED controller; Single channel max current: 6A; Max current of the whole machine: 12A
- SP324E, Mesh group synchronous 4-channel PWM RGB LED controller; Single channel max current: 6A; Max current of the whole machine: 12A
- SP325E, Mesh group synchronous 5-channel PWM RGB LED controller; Single channel max current: 6A; Max current of the whole machine: 12A
- SP328E, Mesh group synchronous SPI iridescent RGB LED controller, Data type: SPI IC Type: Holding Conventional Single Wire Serial Zeroing Code 3-channel Driver IC (such as WS2811, UCS1903, SM16703, etc.) Load points: 900
