Technical Parameters:
Controller Parameters
- Working Voltage:5V~24VDCWorking
- Current:10mA~22mA
- PWM Single Channel Maximun Output Current:2A
- PWM Total Maximun Output Current:6AWorking Temp:-10°℃~40°℃
- Dimension:55mm*26mm*12mm(not including the wires)
Brief:
Five-way PWM RGBCCT LED controller,with unique dynamics,music and DIY effectsto meet your lighting and ambiance needs.
Features:
1.Support App control and2.4G remote control;
2.Support dynamic,music and DIY effects for CCT channels and RGB channelsrespectively;
3.Support effect colection;
4.Capture music through the phone microphone,player streamer and on-boardmicrophone;
5.With sequential channel calibration and ON/OFF timer functions;
6.Support OTA firmware upgrade.
APP:
1.SP645E supports App control forioS and Android devices.
2.Apple devices require ioS 10.0 or higher,and Androiddevices require Android 4.4 or higher.
3.You can search “BanlanX”in App Store or Google Play tofind the APP,or scan the QR code to download and install.
Operations
● Open the App,click the +icon in the top right corner of the home page to
add device;
● Click the ◎icon in the upper right corner of the App to enter the settings
page,where you can modify the device name,set the timings,set the on/offeffect,OTA firmware upgrade,etc.
Work With 2.4G Remote Control:

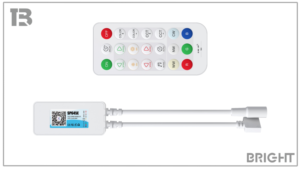

The 2.4G remote control models(RA4)matched with SP645E are as follows:
● Support one-to-many control,one remote control can control multiple controllers.
● Support many-to-one control,each controller can bind up to 5 remote controls.
FCC Statement:
This device complies with part 15 of the FCC Rules.Operation is subject to thefollowing two conditions:(1)This device may not cause harmful interference,and(2)this device must accept any interference received,induding interferencethat may cause undesired operation.
Note:This equipment has been tested and found to comply with the limits for a Class-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which-Consult the dealer or an experienced radio/TV technician for help.B digital device,pursuant to part 15 of the FCC Rules.These limits are designedthe receiver is connected.to provide reasonable protection against harmful interference in a residentialinstallation.This equipment generates,uses and can radiate radio frequencyenergy and,if not installed and used in accordance with the instructions,maycause harmful interference to radio communications.However,there is noguarantee that interference will not occur in a particular instalation.If thisequipment does cause harmful interference to radio or television reception,whichcan be determined by turning the equipment off and on,the user is encouragedto try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment.
This equipment complies with FCC RF radiation exposure limits set forth for anuncontroled environment.
WEEE:风Correctly dispose of this product.This marking indicates that thisTo safely recycle your device,please use return and collection systems orproduct should not be disposed with other household wastescontact the retailer where the device was originally purchased.throughout the EU/UK.To prevent possible harm to the environmentor human health from uncontrolled waste disposal,recycleresponsibly to promote the sustainable reuse of material resources.
