Technical Parameters:
Controller Parameters
- Working Voltage: 5V~24V DC
- Data Type: SPI
- Working Current: 14mA~20mA
- IC Type: Single-wire RZ LED driver IC
- Working Temp: -10℃~40℃
- MAX Pixels: 900/600
- Dimension: 56mm*21mm*12mm (Not including the wires)
Remote Control Parameters
- Working Voltage: 3V(CR2025)
- Static Current: 1uA
- Transport: 2.4G
- Remote Distance: 30M (Open space)
- Dimension: 103mm*45mm*8.5mm
Note:Restore Factory Settings Plug and unplug the power 5 times consecutively → Each power-on lasts approximately 1–2 seconds and must not exceed 5 seconds (exceeding 5 seconds resets the count) → Each power-off lasts at least 2 seconds → After 5 cycles,
the white light flashes 3 times to indicate a successful reset.
Brief:

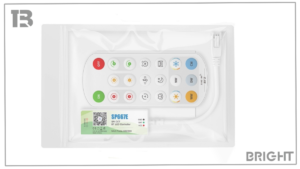

SP667E SPI CCT BT LED Controller that supports control via mobile App and 2.4G remote. App features an intuitive UI for visualized lighting effect previews and includes a variety of built-in dynamic and music lighting effects. It allows flexible
adjustment of brightness and color temperature to match different scenes, meeting refined lighting needs.
Features:
- Supports two convenient control methods: App control and 2.4G RF remote control.
- All-new scene-based app UI design with support for scene switching, lighting effects can be previewed in real time for clear and intuitive visibility.
- Built-in dynamic and music effects with adjustable color temperature, supporting seamless adjustment from cool white to warm white.
- Supports personalized favorites, allowing users to create a custom lighting effect list with loop playback and timer settings.
- Supports customizable power-ON/OFF effects and startup state settings.
- Supports device group management, scheduled power-ON/OFF, and automatic reconnection.
- Supports OTA updates, ensuring your device stays with the latest features and improvements.
Work With 2.4G Remote Control:
The 2.4G remote control model (RF2) compatible with SP667E: Support one-to-many control, one remote control can control multiple controllers; Support many-to-one control, each controller can bind up to 5 remote controls.
FCC Statement:
This device complies with part 15 of the FCC Rules.Operation is subject to thefollowing two conditions:(1)This device may not cause harmful interference,and(2)this device must accept any interference received,including interferencethat may cause undesired operation.
Note:This equipment has been tested and found to comply with the limits for a Class-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which-Consult the dealer or an experienced radio/TV technician for help.B digital device,pursuant to part 15 of the FCC Rules.These limts are designedthe receiver is connected.to provide reasonable protection against harmful interference in a residentialinstallation.This equipment generates,uses and can radiate radio frequencyenergy and,if not installed and used in accordance with the instructions,maycause harmfu interference to radio communications.However,there is noguarantee that interference will not occur in a particular installaion.If thisequipment does cause harmful interference to radio or television reception,whichcan be determined by turning the equipment off and on,the user is encouragedto try to correct the interference by one or more of the following measures:
Changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment.
This equipment complies with FCC RF radiation exposure limits set forth for anuncontrolled environment.
WEEE:风Correctly dispose of this product.This marking indicates that thisTo safely recycle your device,please use return and collection systems orproduct should not be disposed with other household wastescontact the retailer where the device was originally purchased.throughout the EU/UK.To prevent possible harm to the environmentor human health from uncontrolled waste dsposal,recycleresponsibly to promote the sustainable reuse of material resources.
